Suspended / Total Solids Sensors

Cerlic ITX TSS sensor for MLSS

• A high accuracy, online, NIR (near infrared) total suspended solids (TSS) sensor for MLSS (mixed liquor suspended solids)
• Built-in self-cleaning (NOT clipped on) with water or compressed air - no moving parts for low maintenance
• NO service agreements
• Range: 0 » up to 20,000mg/L (ppm) or 2% TSS - dependent on sludge
• Process connection: handrail or slide rail mount
• Temperature: 0 » 60°C
• Enclosure: IP68 (submersible)
• Life expectancy: sensor 10yrs
• Accuracy: ±0.5% FS (TSS)
• Outputs: 4»20mA or optional Profibus DP from BB1 (single sensor - link) or BB2 (up to 4 sensors - link) controller
• Wetted Materials: 316SS & BK7 glass
• See the self-cleaning in action - YouTube demo
• See the telescopic rod with rail mounting kit in action - YouTube demo

Back to top

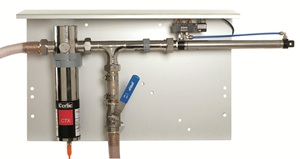

Cerlic ITX-IL in-line TSS sensor for RAS / WAS / DAF thickened sludge

• A high accuracy in-line NIR (near infrared) total suspended solids (TSS) sensor for RAS (return activated sludge) / WAS (waste activated sludge) & some DAF (dissolved air floatation) thickened sludge
• Built-in self-cleaning (NOT clipped on) with water or compressed air - no moving parts for low maintenance
• NO service agreements
• Range: 0 » up to 50,000mg/L (ppm) or 5% TSS - dependent on sludge
• Process connection: hot-tap via isolation valve prevents having to stop process in case of maintenance
• Temperature: 0 » 60°C
• Enclosure: IP65
• Life expectancy: sensor 10yrs
• Accuracy: ±1% FS (TSS)
• Outputs: 4»20mA or optional Profibus DP from BB1 (single sensor - link) or BB2 (up to 4 sensors - link) controller
• Wetted Materials: 316SS & BK7 glass

Back to top

Cerlic CMC high concentration TS sensor

• Micowave, high concentraion total solids (TS) sensor
• True-Phase shift microwave technology provides stable signal & prevents empty pipe errors
• No moving parts for long life & low maintenance
• Multiple models to suit various applications:

  • CMC FT: flow through model with angled ceramic sensor (antenae) surfaces for self-cleaning
  • CMC RD: flow through model with flush-mount ceramic sensor (antenae) surface for abbrassive applications.  Various coatings available for additional protection.
  • CMC ITL: **New** insertion type model with built-in spray cleaning (air or water) with no moving parts.  Suitable for pipes >DN150.  Also available as "hot-tap" (i.e. remove from pipe without stopping flow) model - CMC ITLFV.
• Designed for digested, dewatered, thickened or primary sluge
• Range: up to 30% TS (300,000mg/L or ppm)
• Process connection: wafer flange for DN50 » 300 or insertion type (CMC ITL) with optional hot-tap assembly
• Conductivity: varies depending on pipe size - refer datasheet
• Process pH: 2.5» 11.5
• Temperature: 0 » 100°C (process), 0 » 60°C (ambient)
• Pressure: PN16 (recommend at least 1.5bar to remove air from sludge / biosolids)
• Supply: choice of 85»264Vac or 24Vdc
• Display: remote mount with supplied 10m cable
• Enclosure: IP65
• Accuracy: ±1% FS (TSS)
• Outputs: 3 x 4-20mA analogue outputs or optional HART
  • TS concentration (%, ppm, mg/L, g/L)
  • Sludge temperature
  • Programmable AUX: line pressure (pressure transducer models), conductivity, signal quality (diagnostics)

Back to top

Cerlic Solido TSS sensor for RAS / WAS / MLSS

• A high accuracy NIR (near infrared) total suspended solids (TSS) sensor for RAS (return activated sludge) / WAS (waste activated sludge) / MLSS (mixed liquor suspended solids)
• Plug and play connection to the MultiTracker handheld controller
• Range: 0 » up to 50,000mg/L (ppm) or 5% TSS - dependent on sludge
• Depth: up to 12m
• Temperature: 0 » 50°C
• Enclosure: IP68 (handheld MultiTracker IP65)
• Accuracy: ±1% FS (TSS)
• Output: graphical (backlit) display, alarms (vibration & sound) for 2 x adjustable levels (high & low)
• Datalog up to 250 samples into customised folders before PC sync via supplied cable & software
• Wetted Materials: 316SS, BK7 glass & PUR (cable)
• NEW! With the latest Firmware update of the MultiTracker (v2.3) the Solido can now store & use three separate calibration curves
  • Operators can now datalog for three separate applications (e.g. MLSS, RAS & effluent) with the one device, without having to re-calibrate for each between uses!
  • Head to the MultiTracker page (here) to download the updates
