		Single Point Level Switches 300mm lead wire 1/8" bsp connection & locknut 8 mm stem, 29 mm dia float NO or NC switching Reed switch, 500ma res @ 250v 304ss stem & float	CC Level model numbers (14Kb pdf) CCS 1 FL 1 8T PDF (78Kb pdf) CCS 1 FL 1 8T90 (79Kb pdf) CCS 1 FL 1 8T90 (273Kb jpg)

		Small Float Switches Stainless steel construction NO or NC contact rated at 250v ac / dc @ 500ma resistive load Up to 5 floats per assembly maximum length 1800mm- individual or common circuit wiring Special threads and lengths available Specific gravity 0.8 Temperature rating 120°c maximum Pressure rating :10 kg/cm2 maximum Screw in multi -level assembly 29mm diameter 304 stainless steel float	Examples of small float switches (45Kb pdf) CC Level model numbers (14Kb pdf) CCS 2 THAL Flanged (461Kb jpg) CCS 4 THAL 1T (334Kb jpg) CCSP 2 THAL (294Kb jpg)

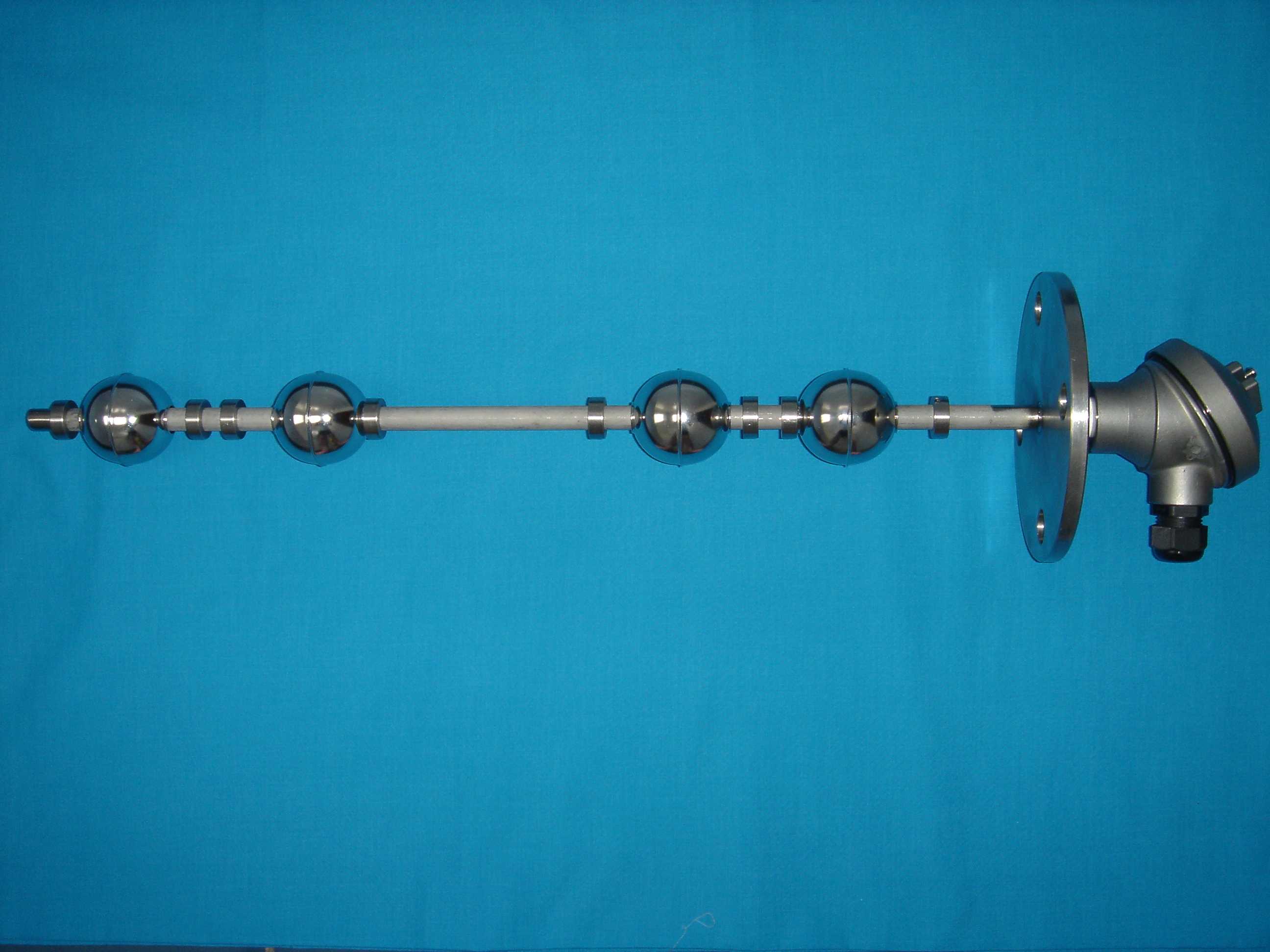

		Large Float switches Stainless steel construction NO or NC contact rated at 250v ac / dc @ 500ma resistive load Up to 5 floats per assembly maximum length 2000mm Individual or common circuit wiring Special threads and lengths available Specific gravity 0.7 Temperature rating 120°c maximum Pressure rating :30 kg/cm2 maximum Screw in multi -level assembly 53mm diameter 304 stainless steel float	Examples of large float switches (36Kb pdf) CC Level model numbers (14Kb pdf) CCL 1 THAL flanged (280Kb jpg) CCL 2 THAL threaded (707Kb jpg) CCL 4 THSS 2D (158Kb jpg) CCL flanged with swill tube (62Kb jpg)
